HC-264A air compressor

Products

Online AEGIS

Current：Products>Main air compressors>Main air compressors>HC-264A air compressor

Product Name：HC-264A air compressor

Downloads

Product Consulting Order

Introduction
Parameters
Installation design
Services

Purpose and scope of application:

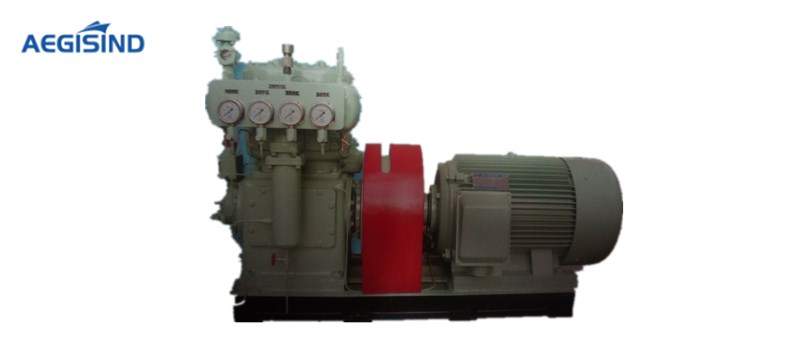

HC-264A air compressor is mainly used to start both the marine and land diesel engines and also as the general compressed air source for pressure test and other high pressure applications.

Structure type:

HC-264A air compressor is vertical air-cooled 2-class compressor

Product Features:

Features: cooling perfection, pressure balance, oil pump pressure can be adjusted. Reliable work under the conditions of a particular ship.

Description: automatic control system can provide according to the customer request, automatic control functions: automatic start, auto stop, automatic discharge load, low oil pressure alarm, exhaust temperature high alarm, low pressure alarm etc..

HC-264A空气压缩机主要技术参数

压缩机型号	HC-264A
型式	立式、水冷、二级压缩
汽缸数	2
额定压力 Mpa	3
额定转速 r/min	730	870	960
容积流量 m³/h	110	130	145
轴功率 kw	26	29	33
吸气滤清方式	滤网式
润滑方式	齿轮泵压力润滑
曲轴箱容量 L	15～17
冷却水量 m³/h	2～2.8
曲轴旋转方向	逆时针（从飞轮端看）
驱动方式	直联转动
卸荷方式	手动卸荷或电磁阀卸荷
型号	Y250M-8-H	Y225S-8-H	Y250M-6-H
额定功率 kw	30	30	37
额定转速 r/min	730	870	980
电压/频率 V/HZ	380/50	440/60	380/50
机组外形尺寸 mm	1870×1080×1155
机组重量 kg	1200

Placement of Installation and Intake Air

Install the compressor possibly nearest to the site of service. If site of service lines scattered, install the compressor collectively around the center of lead to minimize piping resistance and leakage and save the cost of installation.

Also Please note that well lighted space helps you find earlier leakage and abnormal as well as perform maintenance service smoothly, while Quiet environment enables to detect even a slight abnormal sound, preventing possible troubles.

Ample passage provides and facilities security, disassembly work and maintenance and inspection. At least, space of 1 meter should be reserved around the compressor. In most cases air intake includes dust. It is known by analysis that half of the carbon deposit on the valve is dust. These faulty conditions would cause leakage from cylinder or piston, or malfunction of valve, finally efficiency down and great troubles.

Air Delivery Piping

High temperature rise in delivery pipe line would cause thermal expansion. Therefore, piping should be installed in such a manner that it can absorb contraction or expansion.

(1) For this purpose, the use of more than two bends on the midway of pipe line is recommended. Where one piping section is so long, the pipes should be supported with appropriate pipe supports.

(2) Arrange delivery pipe as short as possible.

(3) Stop-valve should not be installed in the midway of delivery pipe. If it is needed to be done, safety valve must be fitted between the compressor and the stop valve. Safety valve used for this purpose should be large enough to release all the Compressed air.

Electric Wiring

Wiring must be installed correctly by qualified engineers or contractors in conformity with applicable codes. Durability and insulation tests should be done carefully while tools and materials used in wiring must meet the requirements of standards. Electrical Motor starting method should be selected according to power facilities of the plant. For details, consult with contractor or our firm.
