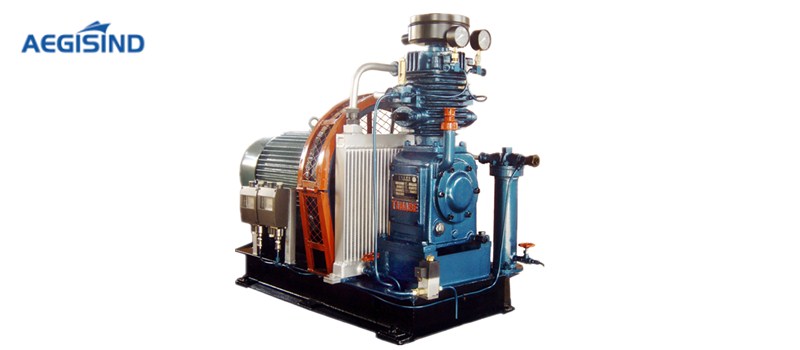

Product Name：LSHC-50A Marine compressor

Downloads

Product Consulting Order

Introduction
Parameters
Installation design
Services

Purpose and scope of application:

LSHC-50A air compressor is mainly used to start both the marine and land diesel engines and also as the general compressed air source for pressure test and other high pressure applications.

Structure type:

LSHC-50A air compressor is vertical air-cooled 2-class compressor. The compressor has compact structure,light weight and small volume.And the compressor adopts aluminum alloy plate cooler,it has good cooling performance and it is reliable-operation in marine conditions.

Unit description:

1.This can be direct driven or belt driven,or diesel engine belt driven,has a common base with oil-water separator,pressure controller,unloading electromagnetic valve,and it also can match temperature control device, shock absorber,exhaust hose and so on.

2.This can match wall-hanging electric cabinet,which can realize automatic unloading, automatic starting, automatic stopping,motor overload,exhaust high temperature alarm and stop and so on.

LSHC-50A air compressor principal specification
Compressor model		LSHC-50A
Type		Vertical、air-cooled、2 stage compression
Number of cylinder		1
Cylinder diameter	first stage(mm)	115
	second stage(mm)	100
Piston stroke(mm)）		76.2
Pressure rating(Mpa)		3
Rotation rating(r/min)		900	1000	1200	1500
Quantity of air supply(m3/h)		25	30	36	45
shaft power(kw)		7	7.5	9	10.4
Suction filtration method		screened type
Lubricating system		Splash lubrication
Capacity of crank case(L)		2
Rotation direction		Counter-clockwise
Method of driving		Direct coupling or V-belt drive
Type of un-loader		Manual un-loader or magnetic un-loader valve
Motor	Model	Y160L-8-H	Y160M-6-H	Y160-6-H	Y160M-4-H
	Power Rating(kw)	7.5	7.5	11	11
	Rotation rating(r/min)	870	970	1170	1460
	Voltage/Frequency(V/Hz)	440/60	380/50	440/60	380/50
Dimension(mm)		1870×680×900
Weight(kg)		310

Placement of Installation and Intake Air

Install the compressor possibly nearest to the site of service. If site of service lines scattered, install the compressor collectively around the center of lead to minimize piping resistance and leakage and save the cost of installation.

Also Please note that well lighted space helps you find earlier leakage and abnormal as well as perform maintenance service smoothly, while Quiet environment enables to detect even a slight abnormal sound, preventing possible troubles.

Ample passage provides and facilities security, disassembly work and maintenance and inspection. At least, space of 1 meter should be reserved around the compressor. In most cases air intake includes dust. It is known by analysis that half of the carbon deposit on the valve is dust. These faulty conditions would cause leakage from cylinder or piston, or malfunction of valve, finally efficiency down and great troubles.

Air Delivery Piping

High temperature rise in delivery pipe line would cause thermal expansion. Therefore, piping should be installed in such a manner that it can absorb contraction or expansion.

(1) For this purpose, the use of more than two bends on the midway of pipe line is recommended. Where one piping section is so long, the pipes should be supported with appropriate pipe supports.

(2) Arrange delivery pipe as short as possible.

(3) Stop-valve should not be installed in the midway of delivery pipe. If it is needed to be done, safety valve must be fitted between the compressor and the stop valve. Safety valve used for this purpose should be large enough to release all the Compressed air.

Electric Wiring

Wiring must be installed correctly by qualified engineers or contractors in conformity with applicable codes. Durability and insulation tests should be done carefully while tools and materials used in wiring must meet the requirements of standards. Electrical Motor starting method should be selected according to power facilities of the plant. For details, consult with contractor or our firm.
