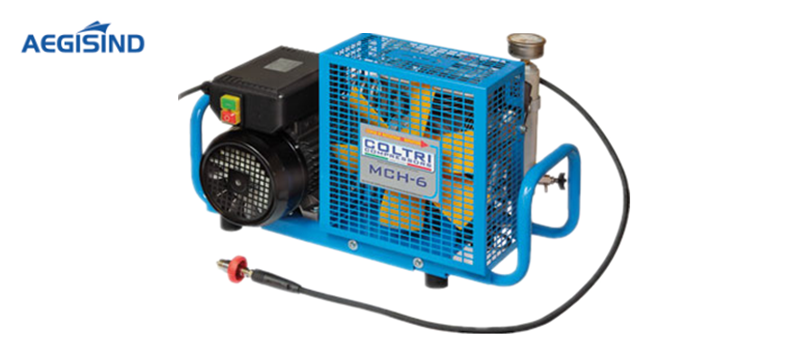

MCH6/EM STANDARD
Standard and Portable
High Pressure Compressor(220V)
We need clean and continuous air
supplying Breathing Air Compressor to
provide air to the life at the scene of the fire, when there is a lot of
poisonous gas,when the atmosphere lack oxygen under the special environment and
the place which is no air,such as underwater.For those people who work in
dangerous conditions,for example,rescuing front lines’ fire fighters be on fire and under
water,policemen, police officers and so on.They take a risk to provide harmony
and security for the society,so they
should get the highest quality High Pressure Breathing Air Compressor to
provide security for their safety.Each
COLTRI COMPRESSORS MCH6/SH Compressor from PANNY Company has extremely high
safety and dfficiency,can provide clean air and meet and exceed the strictest
European standards:EN12021
Structure:
Single phase
motor drive,wind cooled,four
level,all stainless steel at the middle and have cooler at the end
Lubrication:splash
lubrication
The scope of
standard supply
Durable plastic
spraying,all steel base with handle
2.2KW single
phase motor drive
Oil-water
separator(manual blowdown)
Activated carbon,
molecular sieve, Carbon Monoxide Absorb Molecule consist of triple breathinf
air purification syatem.
Reusable packing
canister,it can transpose simple and convenient
Safety valve at
the end
Inlet filter
Shockproof
pressure gauge 0~5800psi/400bar
Operation manual
and spare parts manual(in Chinese or in English is avaiable)
Filling bottle
valve and exhaust hose
Attached Italy original
random COLTRI CE 750 special high pressure compound lubricating oil
The product is
guaranteed for one year
Model |
MCH6/EM |
Type |
Breathing gas |
Free gas output under rated pressure(L/min) |
80 |
Biggest or rated working pressure(Bar g) |
330 |
Driving power(KW) |
2.2 |
Driving mode |
Single phase motor |
Length(mm) |
650 |
Breadth(mm) |
390 |
Height(mm) |
350 |
Weight(Kg) |
39.5 |
Cooling system |
Wind cooled |
Under rated working pressure |
330 Bar g |
Exhaust volume |
80L/min |
Motor power(KW) |
2.2 |
Voltage |
220V |
